Name: Stainless steel ball valve 714 2 piece body BSP HT 1/4''
SKU: 6209
Price: 17.842857142857 EUR
Availability: InStock

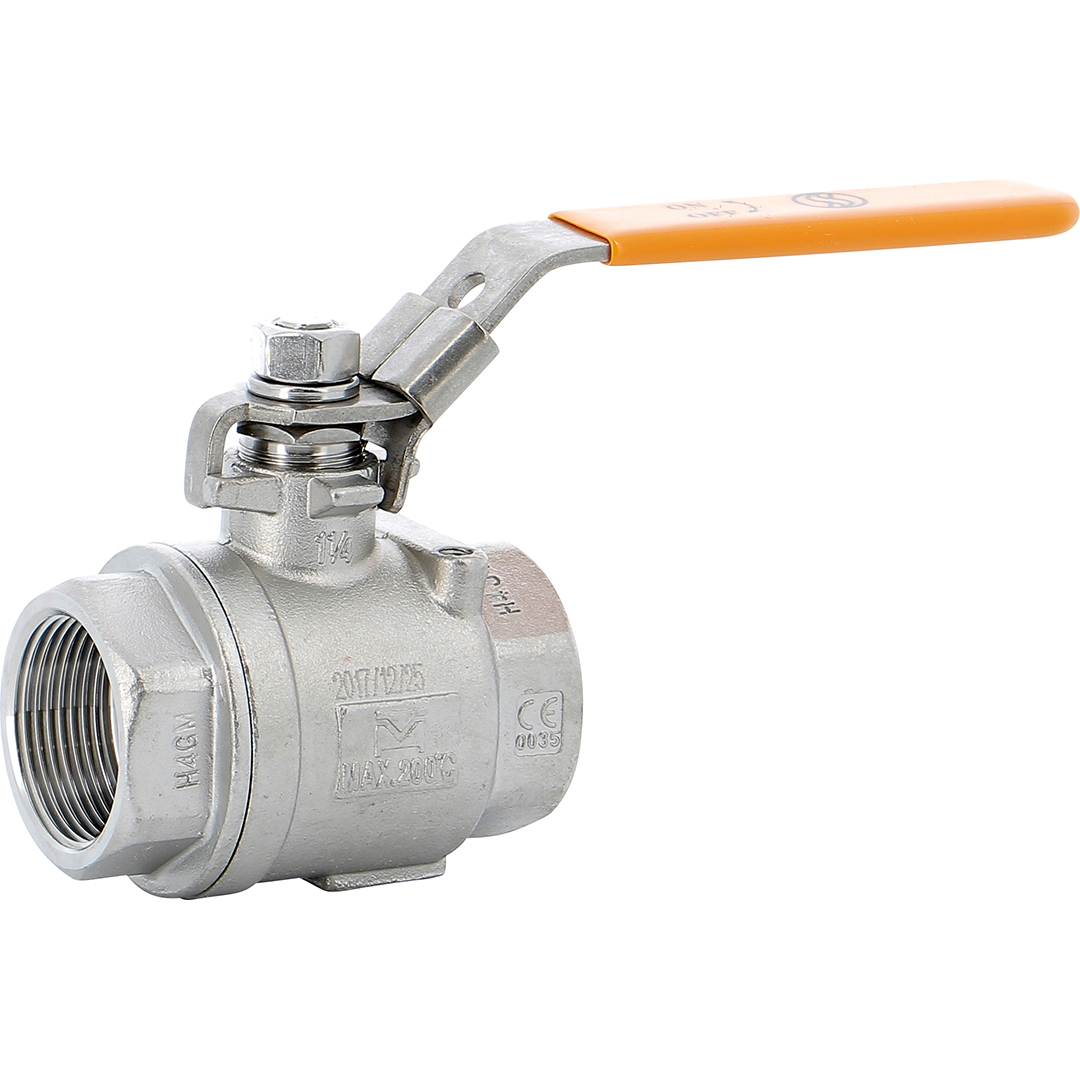

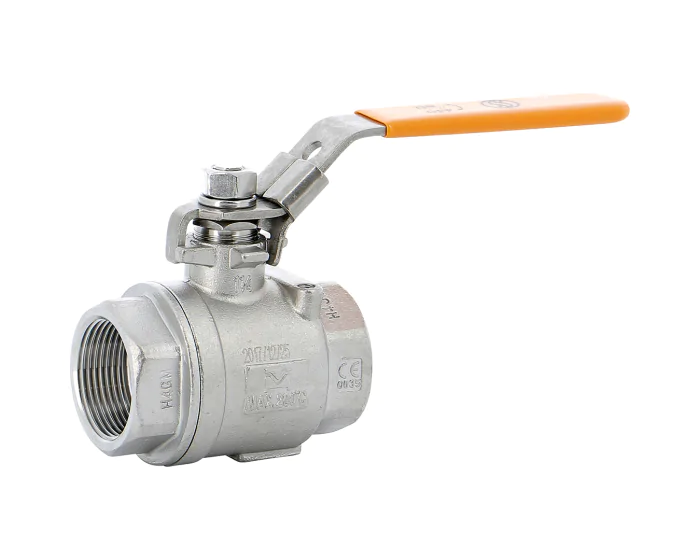

Stainless steel ball valve 714 2 piece body BSP HT 1/4''

Stainless steel ball valve 714 2 piece body BSP HT 1/4''

€17.84 (excl. btw)

The Sferaco 714 series ball valve, 2-piece body, BSP female/female fitting, for solar applications, full bore, ATEX certified, double antistatic system, tightness, PN63

In stock Subject prior to sales
Categories : Kogelkranen

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Reference 714: high temperature two-piece ball valve Our reference 714 is a two-piece ball valve designed for high temperatures applications: this valve tolerates a wide range of temperatures extending from -20 °C up to +200 °C. Body and solid ball are in CF8M stainless steel. The seat is in 15% graphite-filled PTFE, which adds a certain number of advantages: a good thermal and electrical conductivity, less wear for metal parts, low permeability, to quote a few. Coming in sizes ¼'' to 2'', this fitting device has BSP female threaded connections and allows a maximum pressure of 63 bar whatever the diameter (ISOBAR), except with steam (11 bar maximum). However, it is mainly used for solar applications and high temperature fluids in general. Our high temperature two-piece ball valve also enjoys a variety of technical specifications: Full bore Anti-blowout stem Locking handle Double antistatic device Tightness according to TA LUFT certification: body gasket and gland are in PTFE with graphite to limit leaks and fugitive emissions Compatibility with ATEX zones

Specification	Value
DN inches NPS	1/4''
Option certificate 3.1	Yes
CE risk category	III Module H
Thread standard	ISO 7-1 Rp
Tightness test standard	API 598
Stem sealing material	15% Graphite filled PTFE gland packing
Antistatic device	Yes
Steam	Yes
Opening device	Handle
Fugitive emissions standard	TA LUFT VDI 2440
Application	Industry
ATEX atmosphere	Group II Cat. 2G/2D
Shaft/stem matérial	Stainless steel AISI 316
Lockable	Yes
ATEX compatible	Yes
Torque (Nm)	3
DN	DN8 - 1/4''
Face to Face (mm)	605.0
Fluid	Gas
Kv (m³/h)	19.0
Body material	Stainless steel CF8M (1.4408)
Number of ways	2
Bore	Full
ISO pad 5211	No
Packing gland	Yes
PS (bar)	63
Connections	BSP FF
Seats	PTFE-Graphite
Ball material	Stainless steel ASTM A351 CF8M
TS max (°C)	200
TS min (°C)	-20
Ball valve design	2-piece body
ATEX zone	1 & 21. 2 & 22
Warranty period	2 years
CE	Yes
Handle material	Stainless steel AISI 304
Handle type	Red lever

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
6210	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1/4''	714002	S1006442	€17.84 (excl. btw)	add to cart
6211	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 3/8''	714003	S1006443	€18.00 (excl. btw)	add to cart
6212	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1/2''	714004	S1006444	€18.97 (excl. btw)	add to cart
6213	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 3/4''	714005	S1006445	€24.84 (excl. btw)	add to cart
6214	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1''	714006	S1006446	€36.26 (excl. btw)	add to cart
6215	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1''1/4	714007	S1006447	€61.19 (excl. btw)	add to cart
6216	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1''1/2	714008	S1006448	€90.39 (excl. btw)	add to cart
6217	BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 2''	714009	S1006449	€131.89 (excl. btw)	add to cart
